CNC Log Vertical Band Sawmill 1500mm Woodworking Saw Machine

Place of Origin : Shandong Province, China

Brand Name : SH

Certification : ISO9001

Model Number : MJ3310, MJ3210, MJ3212, MJ3212B-5000, etc

MOQ : 1 SET

Price : US $5,000 - 50,000 / Set

Packaging Details : container loading

Delivery Time : within 15 days

Payment Terms : T/T or L/C at sight, Western Union

Supply Ability : 1500sets/year

Name : vertical cutting band saw machine

Condition : New

Type : Band saw

Voltage : 380V/3PH/50HZ Or as customer needs

Max. sawing log diameter : 1500mm

Max. sawing log length : 6meters

Band saw blade size : 9200 x 150 x1.25mm

Band wheel diameter : 1250mm

Carriage walking : Inverter

Log grasp : electrical or pneumatic

Main motor power : 45kw

Sawn sizes setting : PLC Touching screen auto setworks

After -sales service : Video, technical support to engineers overseas

Contact Now

Woodworking Saw Machine vertical log band sawmill wood saw mills with CNC carriage

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

1.MJ3212 CNC vertical band sawmill with automatic log carriage

Technical data	MJ3212-ZD3000	MJ3212-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1200mm	1200mm
Maximum sawing log length	4meters	6meters
Main motor	37KW	37KW
Saw blade LWT	8600x150x1.25mm	8600x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	7500kgs	8000kgs

2. MJ3212B Vertical Band Saw with CNC Automatic Log Carriage

Technical data	MJ3212B-ZD3000	MJ3212B-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1500mm	1500mm
Maximum sawing log length	4meters	6meters
Main motor	45KW	45KW
Saw blade LWT	9200x150x1.25mm	9200x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	11000kgs	12000kgs

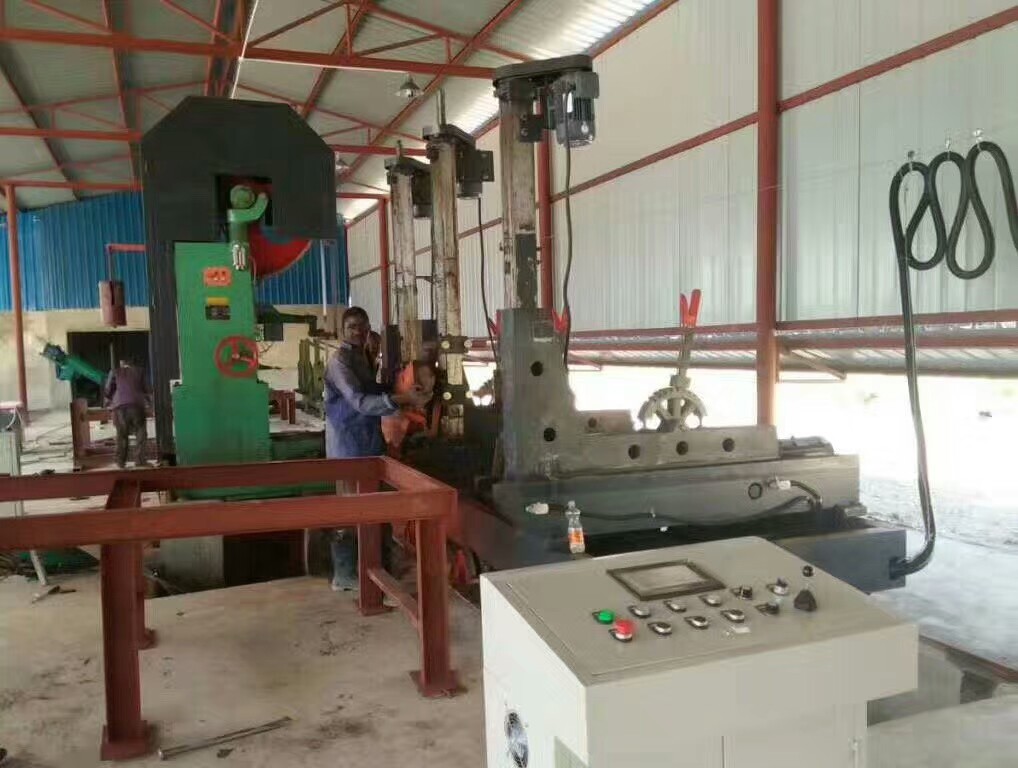

Detailed Image

CNC Log Vertical Band Sawmill 1500mm Woodworking Saw Machine

Feedback from Users

CNC Log Vertical Band Sawmill 1500mm Woodworking Saw Machine

Other sawmill Models

Technical data	MJ3310-DD3000	MJ3310-DD5000
Saw wheel diameter	1070mm	1070mm
Maximum sawing log diameter	1000mm	1000mm
Maximum sawing log length	4meters	6meters
Main motor	30KW	30KW
Saw blade LWT	7400x150x1.05mm	6850x125x1.05mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Manual	Manual
Carriage walking/advance	Electric	Electric
Setting sawn size	Electric	Electric
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	4500kgs	6000kgs

CNC Log Vertical Band Sawmill 1500mm Woodworking Saw Machine

Technical data	MJ3310-ZD3000	MJ3310-ZD5000
Saw wheel diameter	1070mm	1070mm
Maximum sawing log diameter	1000mm	1000mm
Maximum sawing log length	4meters	6meters
Main motor	30KW	30KW
Saw blade LWT	7400x150x1.05mm	7400x150x1.05mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	4500kgs	6000kgs

CNC Log Vertical Band Sawmill 1500mm Woodworking Saw Machine
